We recommend that you always have a look at the provided
link to download the latest version of the software. These instructions
are designed to assist customers set up the system quickly and with
ease.
Please also read the manual included in the CD you got with your package.
It is assumed that the reader has some experience with installing
PCI cards into a PCI slot on a PC motherboard. If this is not the
case, please seek assistance. Installing the VP-DTV Sat or Sat-ci
model is no different than installing any other PCI board (sound card,
modem, network card, etc).
- Uninstall any TV Tuner, video capture or other device that
uses the BT8x8 family of chipsets.
- Choose a PCI slot on the motherboard in the middle (not the
one close to the AGP port, and not the one at the other end of
the MB).
- Connect the Satellite TV cable only after the card is fully
installed and secured in the PC. If uninstalling the card, disconnect
the cable first.

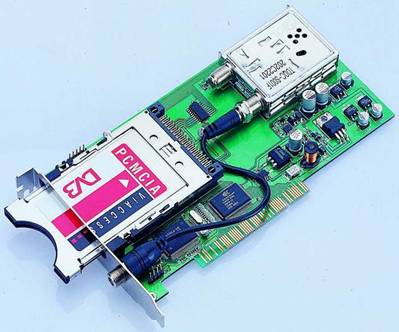

- If you have purchased the VP-DTV Sat-Ci and you are using a
CAM, please make sure that the CAM is not inserted until the PCI
card is fully installed in the PCI slot and secured firmly (tighten
the screw on side of the PC case).
- DO NOT INSERT THE CAM UP-SIDE-DOWN or you may damage the CAM
or the interface.
- The CAM logo (eg Irdeto) should be
facing
the side of the card where the chips, tuner, cable etc are. That
is downward in a PC Tower Case.
- Do not apply too much pressure when inserting the CAM, it should
slide in CI slot freely.
Also ensure you insert the Smart Card with the chip on the same side
as the CAM logo.
.
Use the CD provided, (or the latest version of the software you have
downloaded) insert it into a CD drive.
If autorun is not enabled, using explore, find the setup.exe file and click on it.
Follow the instructions, until the setup process is finished.
Launch the application software (an icon has been placed on your desktop
during the setup process).
Either click on the “spanner” icon on the control panel or right click
your mouse in the video window and select Properties.On the Properties
Panel, choose the LNB switch. Click on LNB Setup. Set the relevant
parameters for LNB Setup 1. For example:
- LNB Power On (This must be off if you have a STB powering the
LNB, otherwise select ON)
- LNB Type (Normal for C Band, Universal for I701, Pas8, Custom
for Optus C1)
- LNB Frequency 1&2 are automatically selected, if you have
chosen normal or universal LNB type. If you have chose custom,
insert here your LNB LOC frequencies, for Optus C1 can use 11300 for
both Freq 1 and Freq 2.
If you don’t have a DiseqC switch you have finished with this Tab.
Otherwise set your other parameters here (eg if you have a DiseqC
switch you may want to select here the LNB corresponding to this setup,
eg LNB A)
Click OK, select Dish Setup Tab. If you have only one Dish and no
DiseqC switch and example of the parameter here might be:
- Select Dish – Dish 1
- Dish Type – Fixed
- Satellite – Choose your satellite, for example Optus C1
- LNB Setup- Setup 1
You can now click on Apply and scan the satellite, if you want to
scan all transponders on the Optus C1 satellite. Alternatively, you
may want to scan for a specific transponder only, for example
(continuing on from the previous Optus C1 example):
- Transponder- Select TP8. The frequency, symbol rate and polarization
for that transponder would be automatically set.
- Click on Apply (you should see the signal strength and quality
green bars appearing)
- Click on Scan Transponder – Scanning should begin and you should
see the scanning software “locking” and “analyzing” the services
it is picking up. If you don’t see the words “analysing” after
the “locking”. Something is not set properly and you may have
to start the process again.
You should save the scanned channels as a file of your choice, for
later loading without having to re-scan.You should now be able to
double-click on the channel appearing in the List window and within
a few seconds, video and audio should be playing. We hope you enjoy
your VisionPlus Product.
For Customer Support email
support@digitalnow.com.au
|
